PUREJET
Water jet machine designed to simplify cutting of smooth or light material
- Beschreibung
- Technische Daten
- Einsatzbereiche:
Water jet machine to simplify cutting of smooth or light material designed for industrial use
Entirely customizable and available in various sizes, PUREJET range is perfect for many materials :
- Rubber and derivatives
- Foams of all densities
- Leather and similar
- Low-thickness plastics and derivatives
- Rock wool, glass wool, plasterboard, etc.
- Cork and thin natural wood (marquetry, etc.)
- Solid or corrugated paper and cardboard, composites NOMEX® type or similar
- Woven or non-woven canvas, tarpaulins, etc.
- Pre-impregnated fabrics and mats of glass or carbon for the production of composite parts
STRENGHTS
Cuztomizable equipment
- 3 differents sizes
- Single or multi-heads
- Visible laser
- Additionnal modules for environment and operator protection
4136 bars HP Pumps created for this range
- Oil/water intensifier for 4000 bar continuous pressure with low maintenance cost
- 10HP version available in 230V single phase power supply
Optimized space
- Compact format
- Positionning stops
- HP flexibles hoses
Latest generation digital control

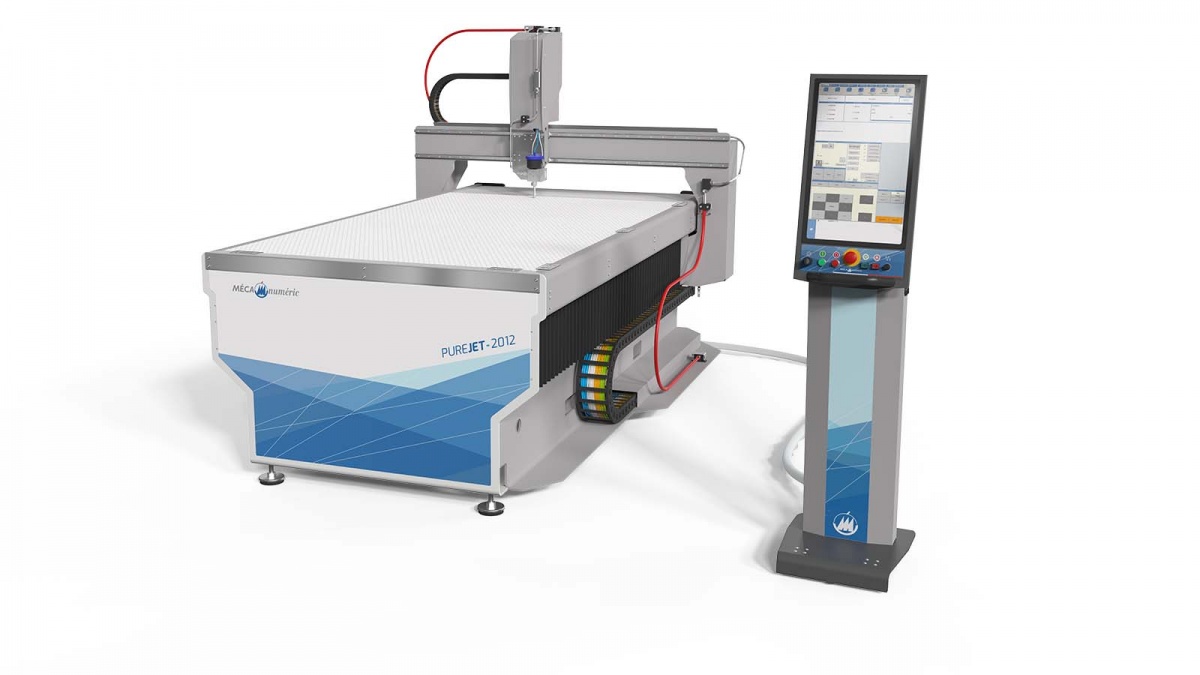

- 21 inches vertical touch screen on mobile control desk
- Modern and user-friendly HMI
- Programming up to 4 programs in cascading sequence
TECHNICAL DESCRIPTION

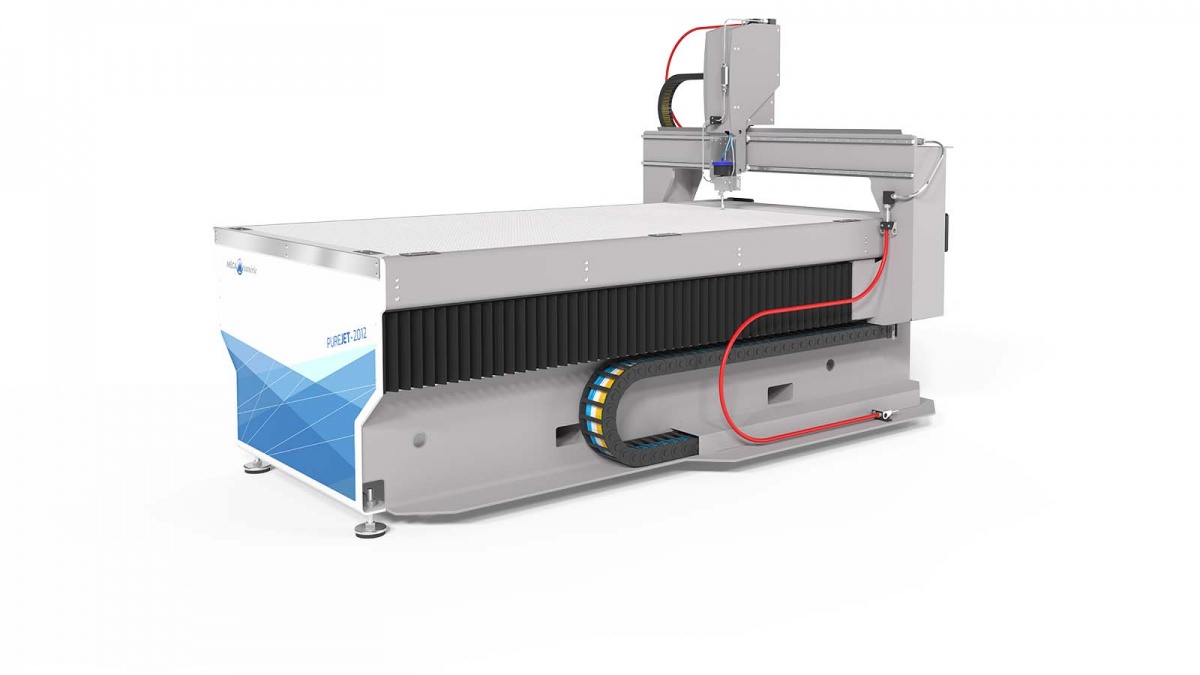

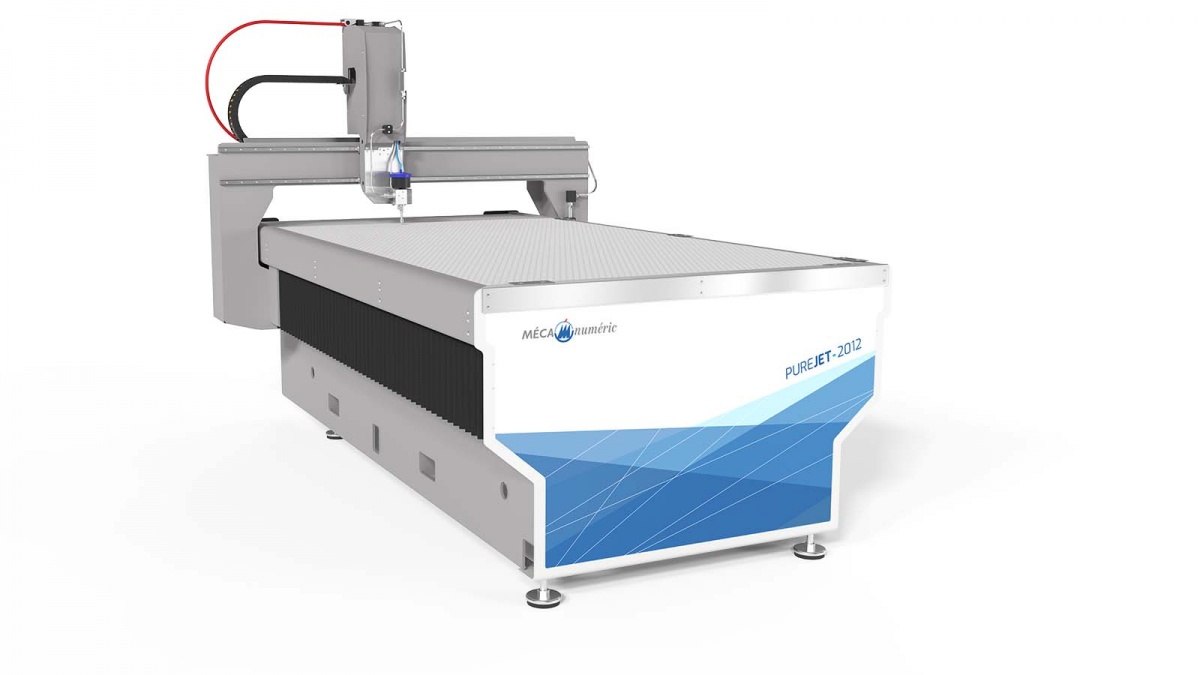

- Structure : Monobloc structure in machinewelded steel and moving gantry in machine-welded aluminium.
- Guidance : Grinded rails and preloaded ball bearings with NRII corrosion protection.
- Transmission : Transmissions by coated helical rack and pinion on X and Y axes and by ball screw on Z axis.
- Motorisation BRUSHLESS motors with absolute encoders on all axes.
DIMENSIONS
PUREJET 1012 | PUREJET 2012 | PUREJET 4020 | |
X axis travel in mm | 1050 | 2050 | 4050 |
Y axis travel in mm | 1220 | 1220 | 2050 |
Z axis travel in mm | 150 | 150 | 220 |
Maximum material width on table | 1240 | 1240 | 2070 |
Length in mm (pumps not included) | 1800 | 2850 | 5220 |
Width in mm | 1995 | 1995 | 2950 |
Height in mm | 1740 | 1740 | 2495 |
Average weight in kg | 1000 | 1400 | 3750 |

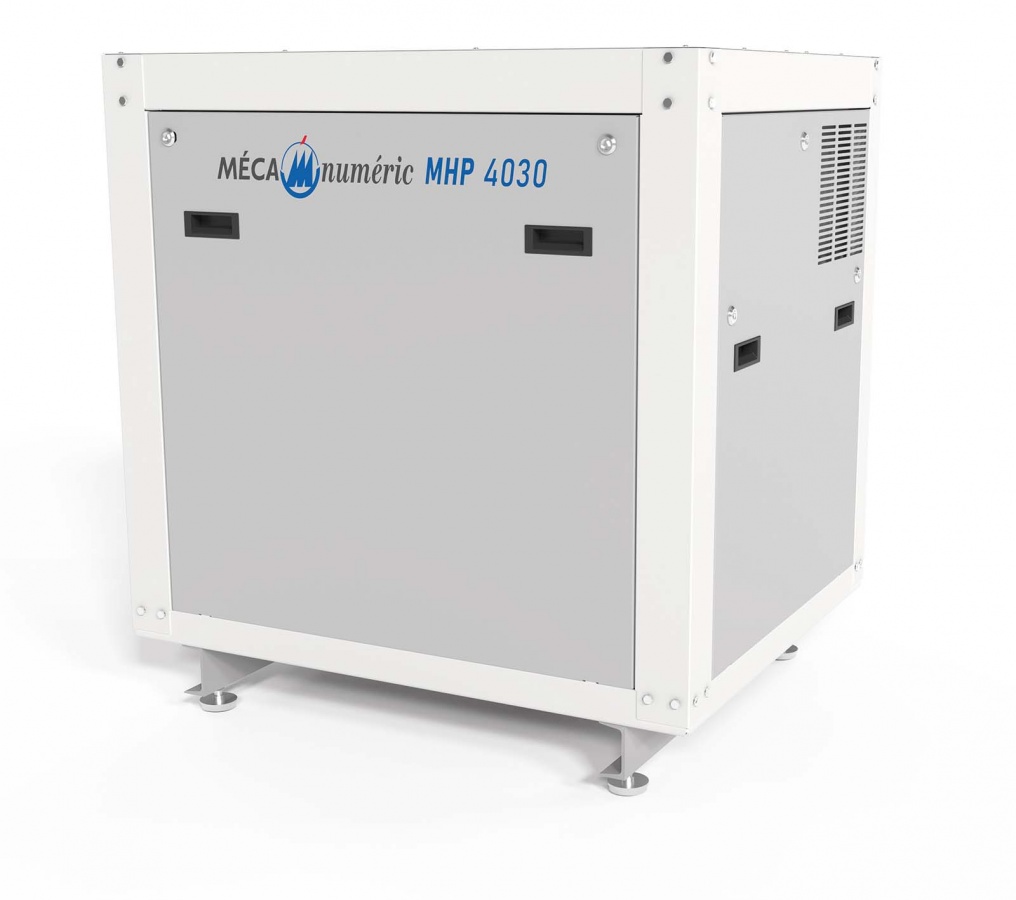

HP PUMPS 4136 BARS
MHP 1040 | MHP 2040 | MHP 3040 | |
Power HP/ kW | 10 HP / 7,5 kW | 20 HP / 15 kW | 30 HP / 22 kW |
Maximum pressure | 4136 bars | 4136 bars | 4136 bars |
Advised working pressure | 3800 bars | 3800 bars | 3800 bars |
Maximum flow litres/minutes at pressure 3800 bars | 0,86 l/min | 1,62 l/min | 2,45 l/min |
Pump capacity at 3800 bars: max. number of heads/max. nozzle diameter |
2 / 0,10 mm or 1 / 0,15 mm |
2 / 0,15 mm | 3 / 0,15 mm |
Pump capacity at 3000 bars: max. number of heads/max. nozzle diameter |
1 / 0.18 mm or 2 /0.12 mm |
1 / 0,25 mm or 2 / 0,18 mm |
1 / 0,33 mm or 2 / 0,22 mm or 3 / 0,18 mm |
230V single phase power supply a nd required Amperes per phase (pump only) |
38 A | non available | non available |
400V three-phase power supply and required Amperes per phase (machine + pump) |
3 x 16 A | 3 x 29 A | 3 x 45 A |
Pump module overall dimensions (L x W x H) in mm | 1600 x 800 x 1300 | 1600 x 800 x 1300 | 1600 x 800 x 1300 |
