MECACUT NL

Agile, precise and compact CNC knife cutting, versatility on top!

  • Beschreibung
  • Technische Daten
  • Einsatzbereiche:

Equipment designed for fast and precise cutting of soft and light materials, ideal for packaging industry.



STRENGHTS :

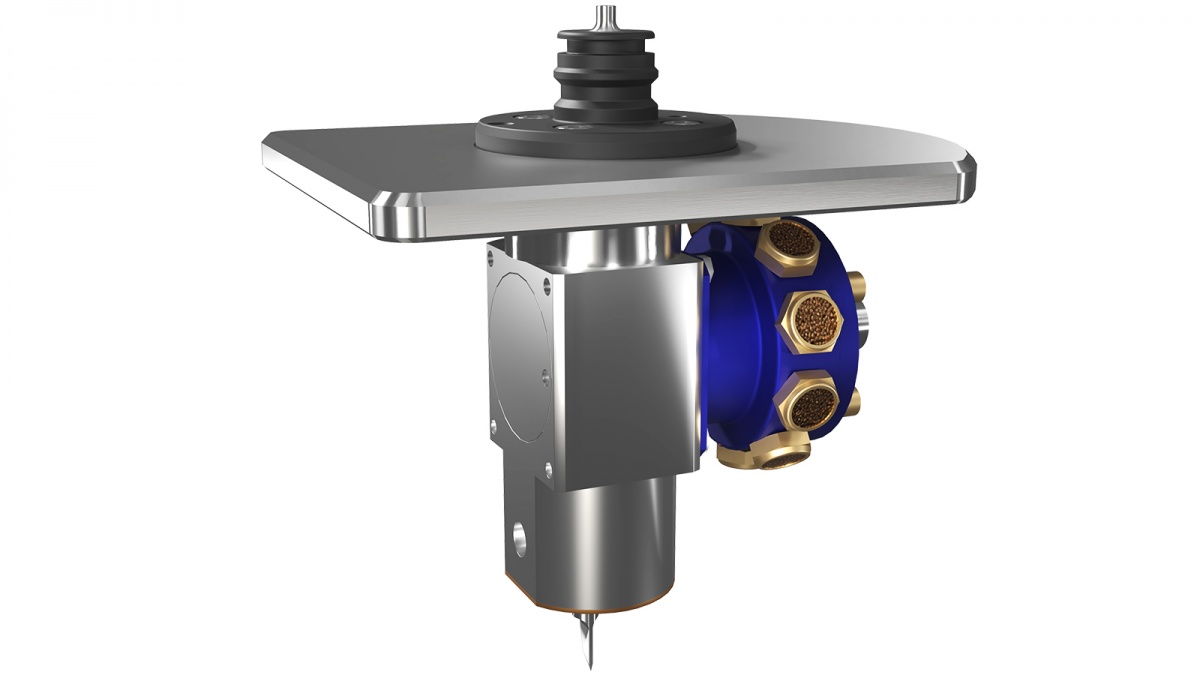

Large choice of cutting heads

  • Cutting head with vibrating or non-vibrating blade
  • Cutting head with orientable blade
  • Non-vibrating disk
  • Creasing wheels of 60 or 90 mm of diameter
  • Marking head

Minimal space requirement

  • Compact machine for a minimum footprint

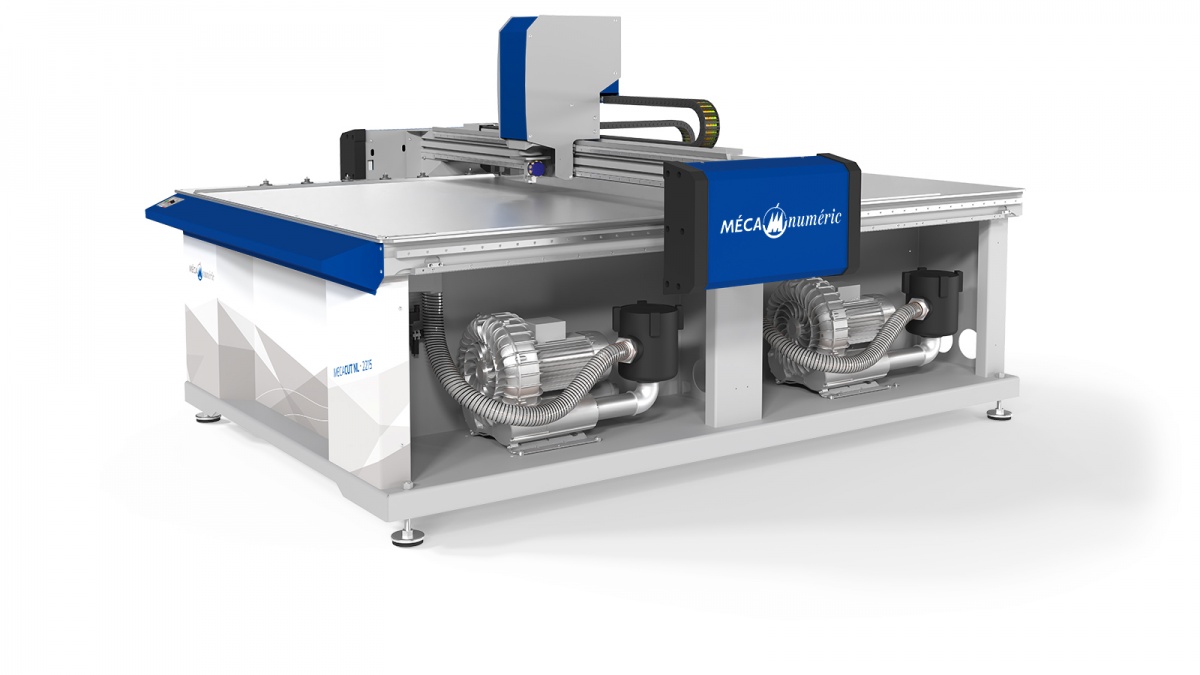

  • Pumps integrated into the chassis to reduce footprint
  • Very accessible working zone for operator thanks to limitations of the non-useful area

Knive cutting for many various materials :

  • Cardboards
  • Rubber and derivatives
  • All thickness foams
  • Textile
  • Leather
  • Adhesive films
  • Rockwool, fibreglass, etc.
  • Cork
  • Pre-preg composites
  • Lightweight plastics

TECHNICAL DATAS

  • Structure : Monobloc chassis in mechanical welded high inertia steel and mobile gantry in mechanical welded aluminium machined in CNC.
  • Guidance : Grinded rails and preloaded ball bearings.
  • Transmission : Helical rack and pinion with ground helical teeth on X and Y axes and ball screw on Z axis.
  • Motorisation : Brushless motors with absolute encoders on all axes XYZ and indexing blades.



DIMENSIONS

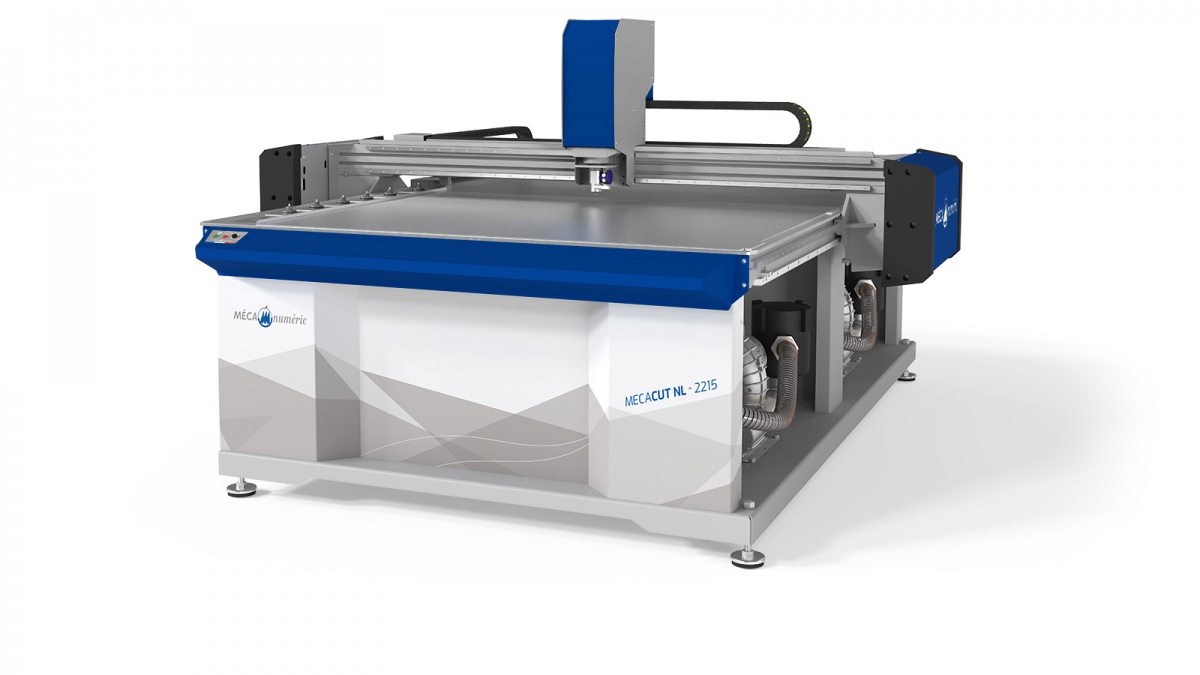

  MECACUT NL 1215 MECACUT NL 2215
X axis travel in mm 1210 2250
Y axis travel in mm 1540 1540
Material maximum thickness in mm 25 25
Material maximum width in mm: useful / passage 1540 / 1580 1540 / 1580
Passage under gantry in mm 60 60
Length in mm 1900 2950
Width in mm 2500 2500
Height in mm 1600 1600
Average weight in kg 1150 1600
