Efficient, versatile & adaptable cutting equipment for many fields

  • Beschreibung
  • Technische Daten
  • Einsatzbereiche:

Designed for intensive industrial use



Working area adapted to new plate dimensions (working width 1600 or 2100 mm) for a wide range of plate and unrolled materials :

  • Polymers : PMMA, PEHD, PS, PET, PETG, PU, PC, ABS, PVC…in solid or honeycomb panels
  • Wood and its by-products: MDF, TRESPA and others phenolic derivatives, natural wood…
  • Lights alloys : Aluminium, Brass, Copper, Zinc…
  • Composites : Alucobond®, Dibond® and similar, Glass/Epoxy, Carbon/Epoxy…
  • Honeycomb panels: Nida®, Nomex®…
  • Machinable plates for molds and models
  • Hard materials only under conditions: Steel, Stainless Steel, Titanium
  • Mineral base panels for ITE
  • Rubber and derivatives
  • Foams with all densities
  • Paper, cardboard and derivatives
  • Plastics with small thickness (PVC, PS, PET, PETG, ABS, PC…)



STRENGHTS :



VERSATILE AND CUSTOMIZABLE EQUIPMENT :

  • High-speed machining (HSM)
  • Secondary pre-installed functions (heads non included): knife-cutting with tangential control, creasing by shaped wheels, cutting by disc blade, rigid tapping...
  • Secondary optional functions: angle sawing, angle head, camera registration, tool cooling...

POWERFUL ELECTROSPINDLE WITH HIGH ROTATIVE SPEED

  • 2 models available
  • 4 ceramic bearings
  • Shock, vibration and temperature sensors with digital control alerts

PRE-SET TOOL SHOP FOR ALL TYPES OF TOOLS AND HEADS

  • 9 to 15 locations
  • Including 4 to 6 combined locations for: cones for vertical tools, cones for tangential control heads, cones for angle heads
  • Laser sensor for contactless measurement of tool length and diameter or the geometry and location of blades

DESIGNED TO LIMIT THE IMPACT ON THE ENVIRONMENT

  • Position-controlled chip suction nose
  • Vacuum table with variable power from 40 to 120% to always have the correct plate holding level with no electrical overconsumption

NUMERICAL CONTROL LATEST GENERATION

  • 21 inches vertical touch screen on mobile control panel
  • Modern, simple and user-friendly HMI with online operator guidance (to avoid oversights and errors)

TECHNICAL DATA



  • Structure : Monobloc chassis and mobile gantry in mechanical welded high inertia steel
  • Table : Aluminium fixed table with consumable top cover in option
  • Guidance : Grinded prismatic rails and preloaded ball bearings.
  • Transmission : Ball screw with preloaded nuts on all axes (two ball screws on X axis)
  • Motorisation : Brushless motors with absolute encoders on all axes (two motors on X axis)



DIMENSIONS

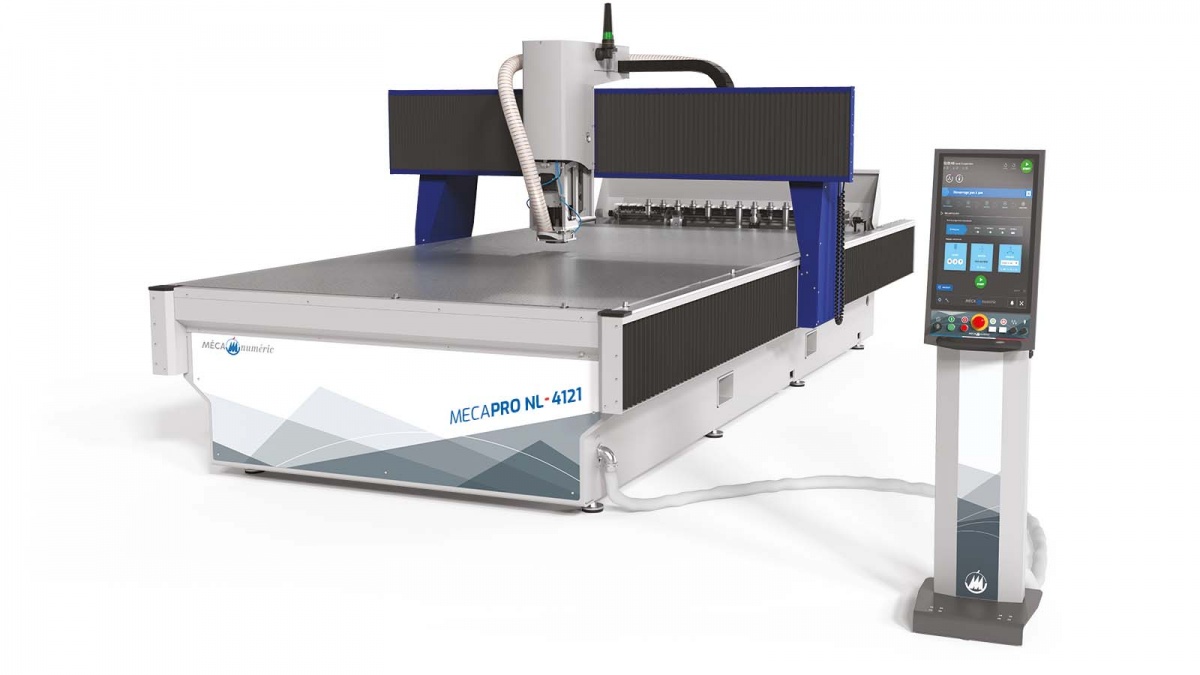

  MECAPRO NL 3116 MECAPRO NL 3121 MECAPRO NL 4121
X axis travel in mm 3100 3100 4100
Y axis travel in mm 1600 2100 2100
Z axis travel in mm 325 325 325
Passage between uprights (reference points not used):
over the first 100 mm / the entire height above the table
1700 / 1600 2200 / 2100 2200 / 2100
Passage under gantry or under spindle nose in mm 380 380 380
Length in mm (pumps not included) 4600 4600 5600
Width in mm 2600 3100 3100
Height in mm 2700 2700 2700
Average weight in kg 4000 4500 5000



POWERFUL ELECTROSPINDLE WITH HIGH ROTATIVE SPEED



  HSD951-SM-A8 HSD951-SM-W12
Maximum power
S1 - S6 in kW
8 - 9,6 12 - 14,4
Max torque S1/S6 6,4 / 7,7 Nm
à 12 000 rpm
9,5 / 11,4 Nm
à 12 000 rpm
Rotation speed rpm 0 à 28 000 rpm 0 à 28 000 rpm
Coolant AIR WATER
Cooling Fan Regulated cooling unit
Tool changing Automatic, HSK-F63 Automatic, HSK-F63
